Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Product Categories

Pass Management Terminal [72]
7" tablet pc for home automation [272]
7" PoE Wall Mounted Tablet [274]
7" tablet pc with NFC LED for office/booking meeting room [119]
10" PoE Tablet PC [100]
10.1" tablet pc with RS232/RS485/GPIO [62]
10" tablet pc with NFC LED [61]
5'' tablet with Zigbee/Proximity Sensor [7]

Shenzhen Sibo Industrial & Development Co., Ltd.

Contact Now

Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Name: InwallOnwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation
Brand: SIBO
Price: 140 USD

China Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation wholesale

Brand Name : SIBO

Model Number : Q896S

Certification : CE, FCC

Place of Origin : Shenzhen

MOQ : 2 units

Price : 140-170$/pc

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-25 working days

Packaging Details : 10 pcs in one carton

Model : Q896S

Size : 7 inch

Operating system : Android 6.0

Screen : IPS capacitive touch screen

Network : WIFI, bluetooth, Lan, 3G USB dongle

Connectors : HDMI output, DC slot, RJ45, USB2.0

Optional serial ports : GPIO, RS232,RS485

power supply : DC9V-36V, AC 100V-240V

Features : NO battery, No buttons

Mounting : Inwall/onwall/glass wall mounting

Contact Now

Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Standard accessories;
WIFI
Bluetooth
Camera (0.3MP)
Power adapter

Optional accessories:
POE
NFC RFID Reading module
LED indicating bar
Aruino Nano
RS232
RS485

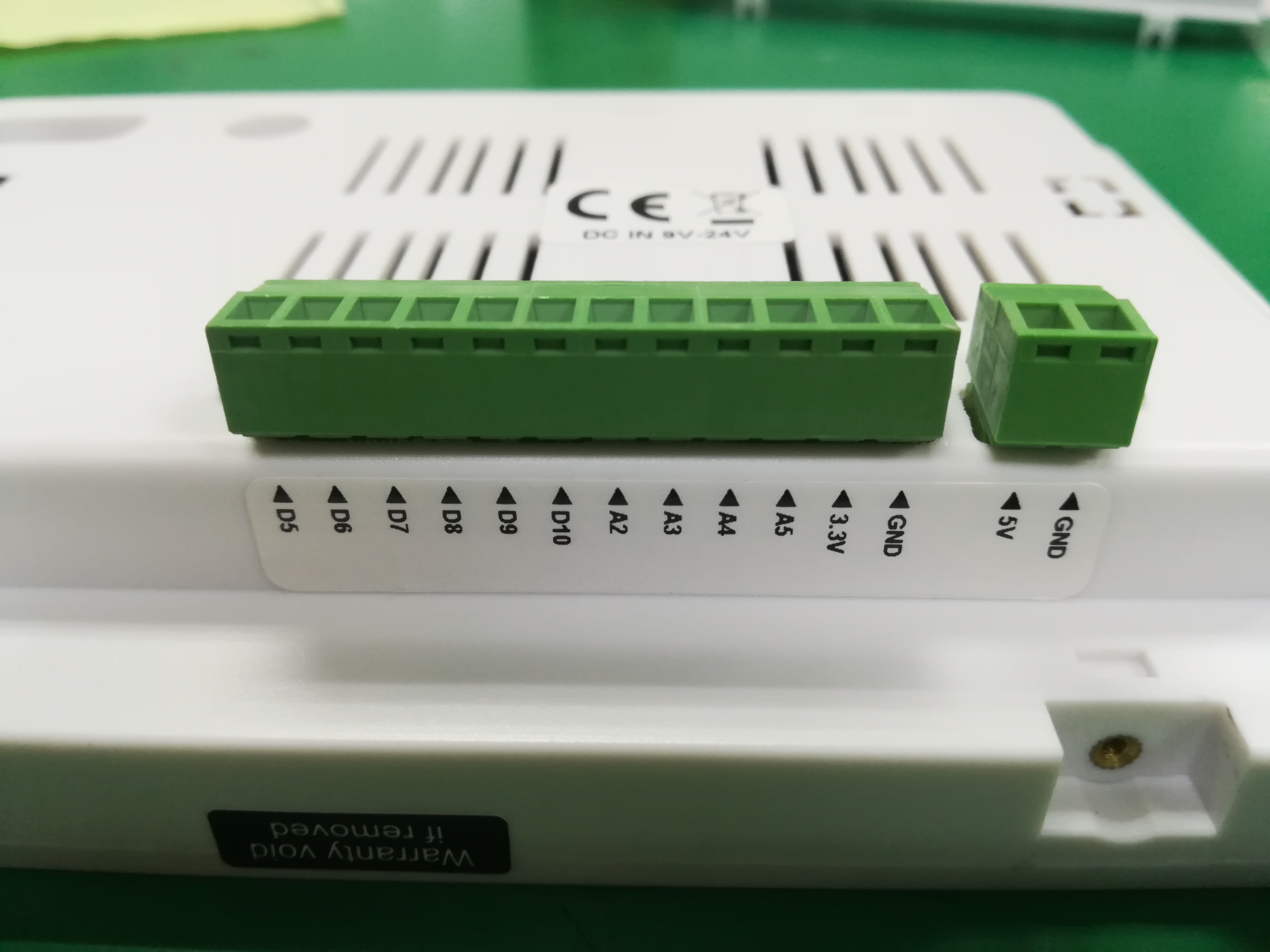

GPIO

With GPIO
Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Sepcification:

Model Number		Q896S
Hardware Specs	Processor	Allwinner A83T processor
	CPU	8-Core ARM Cortex A7 CPU, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	2GB
	Nand Flash	8GB

Software Feature	System	Google Android 6.0
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
	Language	Support multi-languages

Interfaces	Back	HDMI Out
		DC IN Power Terminal (9V-36V)
		Ethernet Interface(RJ45)
		USB Socket HOST Mode By Default, Can be configurated to DEVICE
		Optional:RS232,RS485

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	LAN Port	Ethernet RJ45

Power Supply	DC IN	DC 9V - 36V

Boot Up	Auto Boot	Auto Boot Up When Power Supplies

The file is basic informtion, custom details please contact us!

Product Pictures:
Standard tablet
Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation
Power over Ethernet(PoE)
Using Rj45, one cablet could provide power and transmit data.
IEEE802.3af, 48V

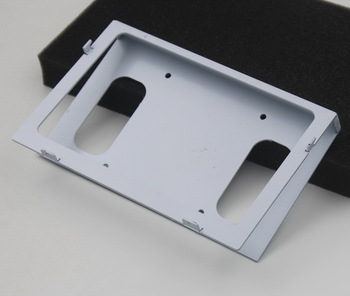

Wall Mounting

On-glass mounting with LED bar:
Bracket: L174×W110×H44(mm)
Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

On Normal Wall
metal box: L69×W55×H15(mm)

In flush Wall Mount:

Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Highly suggested to purchase a sample unit and test our product.

Technical Details

Type	Q896S
Screen Size	7 INCH
Display screen type	IPS TFT-LCD
Display resolution	1024 X 600
Processor Manufacture	AllWinner
Processor Type	8 core
Hard Drive Capacity	8GB
Memory Capacity	2GB
Operating System	Android 6.0
WIFI:	802.11b/g/n
Bluetooth	V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
LAN Port	Ethernet RJ45
Power Supply	DC 9V~36V
Touch Screen Type	Capacitive Screen
Power Supply	DV 9v – 36v; POE supported

Company Information

About us:
Shenzhen Sibo Industrial and Development Company limited, established in 2001. own all plastic moulds of our tablets, has strong ability on plastic casing design and pcb board development with in house engineers. SIBO produces according to the standard of ISO9001, and execute strict raw material and final product inspection. SIBO tablets have passed CE, FCC, ROHS test. All production data are uploaded to our server for history tracking, this data will be stored for 3 years.
Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Certification:

Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation

Contact person

Sales: Nico Liang
Inwall/Onwall Mounted Android 7 Inch POE Tablet With SIP Intercom For Home Automation +86 13750414235 Nirol@foxmail.com

+86-755-26977944 +86-755-26977632

http://www.sibosz.net/

Co.: Shenzhen Sibo Industrial & developent Co., ltd.

We support sample order. Welcome your inquiry!
