Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player

Name: Android POE 7quot Touch Screen 1024600 In Wall On Wall Player
Brand: SIBO
Price: 1 USD

China Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player wholesale

Brand Name : SIBO

Model Number : Q896S

Certification : CE, FCC

Place of Origin : Shenzhen

MOQ : 2 units

Payment Terms : T/T

Delivery Time : 5-25 working days

Packaging Details : 10 pcs in one carton

OS : Android 6.0

CPU : Allwinner A83T 8-core

screen : multiple capacitive touch screen

RAM : 2GB

ROM : 8GB

network : wifi, 3G, Ethernet,blurtooth

power supply : DC IN or POE

interface : camera, USB, HDMI output, RJ45,DC IN

serial ports : RS232, RS485, GPIO

Optional accessories : NFC, three-colors LED, temperature sensor, light sensor

Bracket : Onwall, inwall, glass wall, table

Supply Ability : 2000pcs/month

Contact Now

Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player

Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player

Features:

IPS Screen (G+G glass)
Three color led light on the top to show room status (blue, red, green)
Android OS
In wall / On wall version / Glass wall mount
HDMI, Serial port , GPIO , Uart interface
No buttons design
Slim Body with 3 Brackets for wall mounting
Camera & Mic
Support ROOT permissions for private application
No battery design
Auto power on
12V DC / 24V DC available for power
Auto web application (one web page can be showed only on the screen)
POE feature (IEEE 802.3 af)

Application :

Meeting romm Schedule,
Office control region,
Home Automation,
Industrial control

Customized Service:

Customized animation firmware with your logo (available in bulk order)
Temperature/Humidity Sensor
Customized USB jumper for app debugging

Standard accessories;

WIFI
Bluetooth
Camera
Power adapter

Optional accessories:

PoE
NFC RFID Reading module
LED indicating bar
Arduino Nano
RS232
RS485
GPIO

With multi color controllable Indicator on the top (red / green / blue), suitable for meeting room applications, home automation and control

Demo application software and source code will be provided for you to integrate LED control feature into your own software.

Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player

Specification:

Model Number		Q896S
Hardware Specs	Solution	Allwinner’s A83T processor
	CPU	Octa-core Cortex tm-7a CPU A83T 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	2GB
	Nand Flash	8GB

Software Feature	System	Google Android 6.0
	Audio	One Speaker 1 X 1 Watt (Integrated 3W Amplifier)
	Language	Support multi-languages

Interfaces	Back	Ethernet Interface(RJ45)
		HDMI Out
		USB 2.0 port USD HOST Mode Default, Optional: Jumper Cap for Device Mode
		DC IN Power Terminal (9V-36V)
		Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth 4.0 support BLE
	LAN Port	Ethernet RJ45

Power Supply	DC IN or PoE	DC 9V - 36V or PoE

Boot Up	Auto Boot	Auto Boot Up When Power Supplies

It is Wall Tablet / Desk Tablet, no battery , no buttons (with auto power on feature), it is a serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player

DC+ POE for power supply

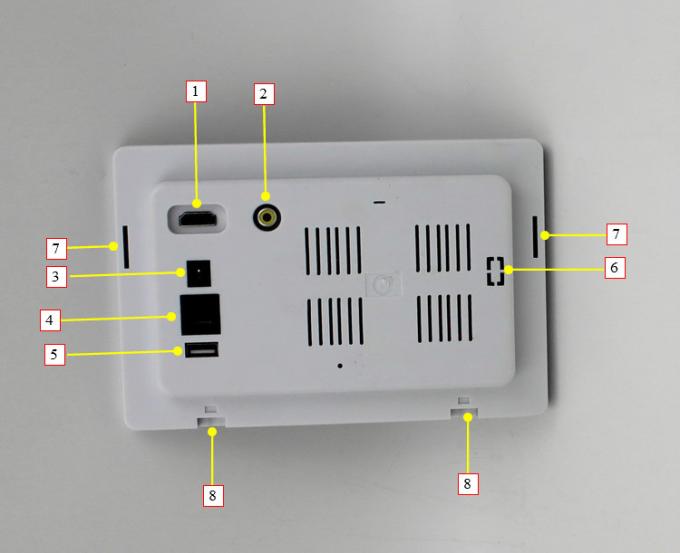

Q896S INTERFACE:

1.HDMI OUT

2.CVBS IN(Removed)

3.DC IN (9-24V)

4.RJ45

5.USB

6.UART, IO , 3W AMP OUT

7.SLOTS FOR MOUNTING

8.SCREWS FOR MOUNTING

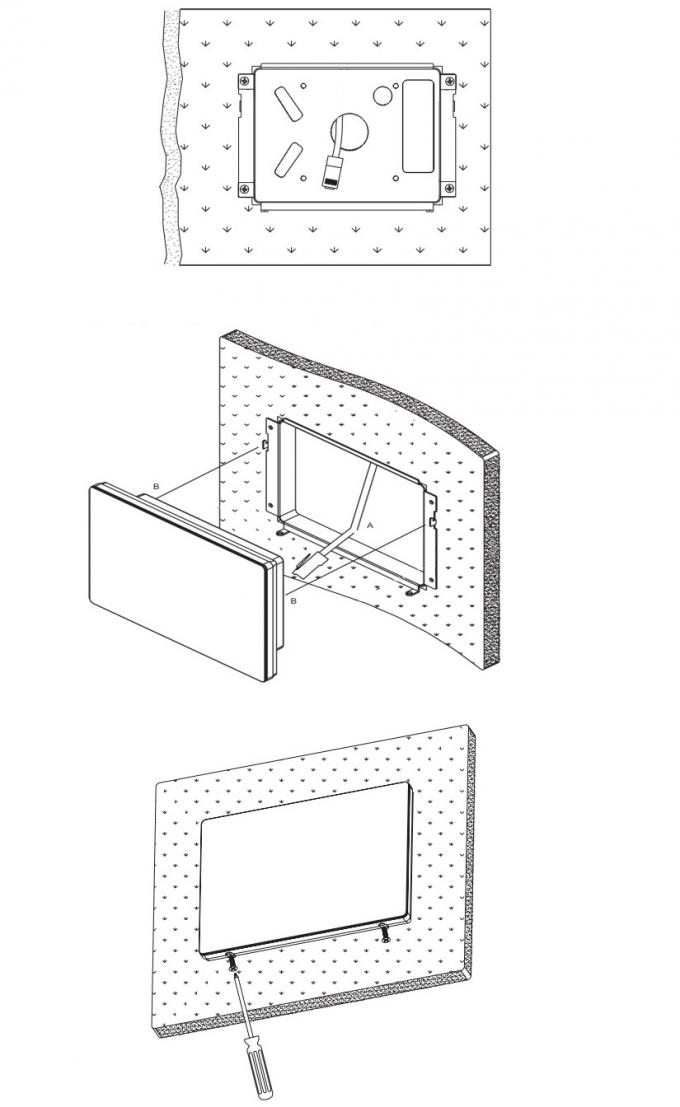

In wall installation :

Application:
Android POE 7" Touch Screen 1024*600 In Wall, On Wall Player
