Q896 7" Android POE Touch Screen Monitor With CVBS IN

Name: Q896 7quot Android POE Touch Screen Monitor With CVBS IN
Brand: SIBO
Price: 1 USD

China Q896 7" Android POE Touch Screen Monitor With CVBS IN wholesale

Brand Name : SIBO

Model Number : Q896

Certification : CE, FCC

Place of Origin : Shenzhen

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-25 working days

colour : black / white

serial port : rs485/ rs232/ gpio

DC IN : 9V-36V

Special : power over ethernet

Power supply : poe / dc in

Service : OEM / ODM

Application : Home application

warranty : 1 year

MOQ : 2 units

Packaging Details : 10 pcs in one carton

Contact Now

Q896 7" Android POE Touch Screen Monitor With CVBS IN

POE allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. With POE you can enjoy the net and power supply at the same time. CVBS is the abbreation of Composite Video Baseband Signal. With CVBS In you can use our tablet connect with CCTV camera. It can also be used as the surveillance camera.

Advantage:

Android OS rooted
Inwall flush/onwall surface/glass wall/desktop different mounting ways
CBVS , HDMI, USB 2.0(default by USB host),
GPIO/RS232/RS485 Serial port
No physical buttons design & No battery design
POE (IEEE 802.3 af 48V)
Optional to remove Android navigation bar(support full screen software application in kiosk mode)
Optional to provide USB jumper to connect PC for debugging

Product Description

Q896 7" Android POE Touch Screen Monitor With CVBS IN

Hardware Specs:

Screen:7 inch
Capacitive touch screen, glass + glass
1024X600 resolution, 350 nits brightness
No any buttons

Power Supply:

DC IN : DC 9V-36V
POE(optional): IEEE 802.3 AF(48V)

Interfaces:

Ethernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN to Connect CCTV Camera
UART, IO, 3W AMP OUT Available: RS485, RS232

Network:

WLAN(WIFI802.1b/g/n)
Bluetooth
LAN Ethernet RJ45

Q896 7" Android POE Touch Screen Monitor With CVBS IN

poe in picture:

Q896 7" Android POE Touch Screen Monitor With CVBS IN

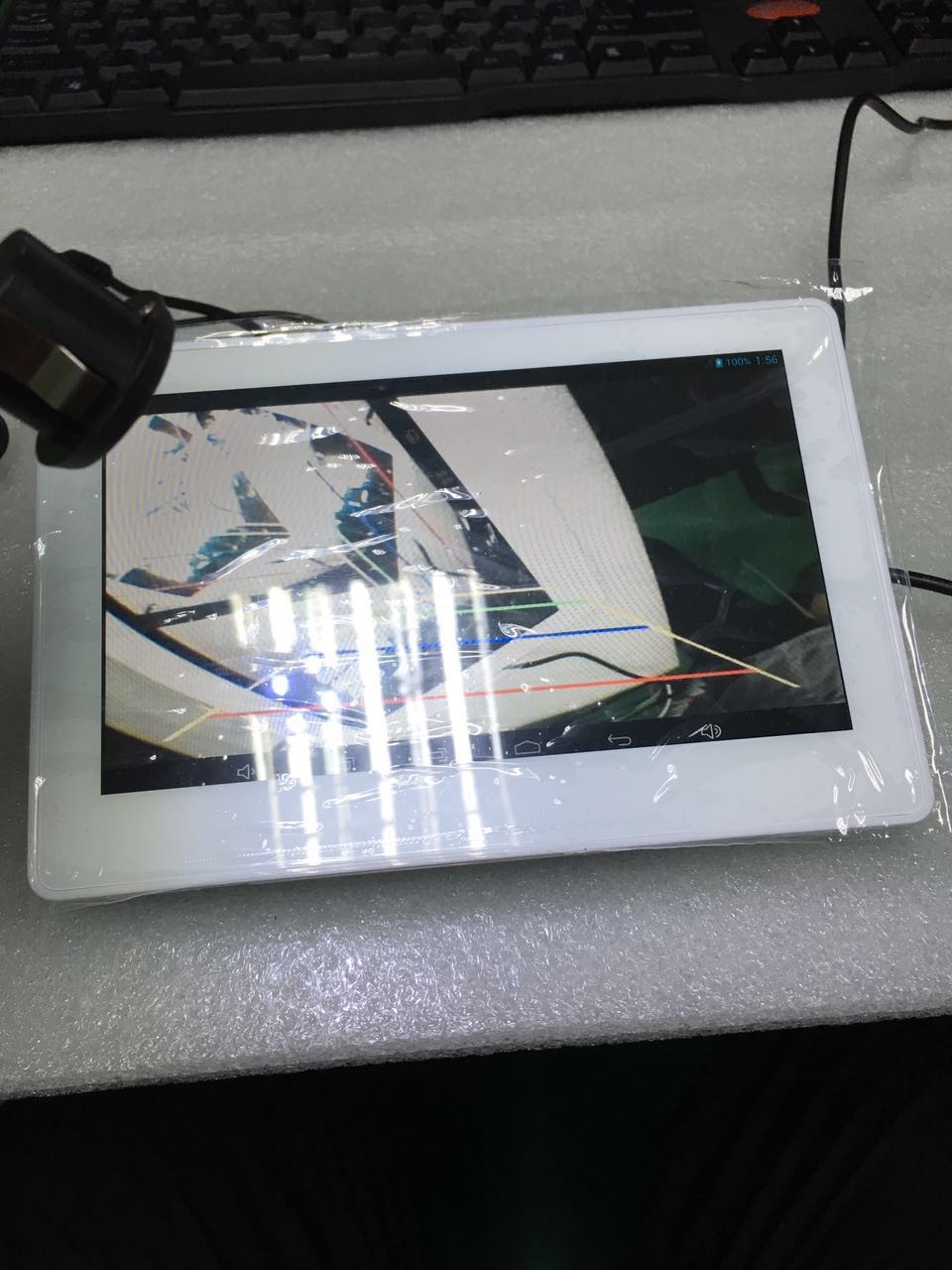

CVBS in picture:

Q896 7" Android POE Touch Screen Monitor With CVBS IN

Packaging & Shipping

Package:

Devices are packed by air column bag, 10 devices in one carton box
Carton Size:55*36*24cm
Gross Carton Weight: 7.5 kg

Shipping:

Sample lead time: 5-7 working days
Order>100 pcs: 20-25 working days
Sample shipped by express (DHL, TNT, UPS)

Q896 7" Android POE Touch Screen Monitor With CVBS IN

Our Services

Hardware and software support:
Modification on both hardware and software to meet your requirements
After sale service: Instant response to all your questions

ODM/OEM service is provided
