Q896 7" IPS Display Touch Panel With USB Jumper For Debugging

Name: Q896 7quot IPS Display Touch Panel With USB Jumper For Debugging
Brand: SIBO
Price: 1 USD

China Q896 7" IPS Display Touch Panel With USB Jumper For Debugging wholesale

Brand Name : SIBO

Model Number : Q896

Certification : CE, FCC

Place of Origin : Shenzhen

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-25 working days

colour : black / white

serial port : rs485/ rs232/ gpio

DC IN : 9V-36V

Special : power over ethernet

Power supply : poe / dc in

Service : OEM / ODM

Application : Home application

warranty : 1 year

MOQ : 2 units

Packaging Details : 10 pcs in one carton

Contact Now

Q896 7" IPS Display Touch Panel With USB Jumper For

Debugging

Advantage:

Android OS rooted
Inwall flush/onwall surface/glass wall/desktop different mounting ways
CBVS , HDMI, USB 2.0(default by USB host),GPIO/RS232/RS485
No physical buttons design & No battery design
POE (IEEE 802.3 af 48V)
Optional to remove Android navigation bar(support full screen software application in kiosk mode)
Optional to provide USB jumper to connect PC for debugging

Q896 7" IPS Display Touch Panel With USB Jumper For Debugging

Q896 model is 7" ips display panel pc with usb jumper for debugging. The USB2.0 port is USB host by default, you can add USB jumper to connect PC when debugging.(with jumper cap,it can turn to USB device:without jumper cap,it will be USB host ). Q896 is very suitable for your home automation. Also carries with android 4.2.2 system, you can download the apps from google store to use.

Application:

Home automation, control other devices in home
Data collection
Security system
Showing energy data in homes
Home/Building/Hotel Automation Integration

Product Description

Q896 7" IPS Display Touch Panel With USB Jumper For

Debugging

Hardware Specs:

Screen:7 inch
Capacitive touch screen, glass + glass
1024X600 resolution, 350 nits brightness
No any buttons

Power Supply:

DC IN : DC 9V-36V
POE(optional): IEEE 802.3 AF(48V)

Interfaces:

Ethernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN to Connect CCTV Camera
UART, IO, 3W AMP OUT Available: RS485, RS232

Network:

WLAN(WIFI802.1b/g/n)
Bluetooth
LAN Ethernet RJ45

Q896 7" IPS Display Touch Panel With USB Jumper For Debugging

Inwall flush mount

Q896 7" IPS Display Touch Panel With USB Jumper For Debugging

onwall mount

Q896 7" IPS Display Touch Panel With USB Jumper For Debugging

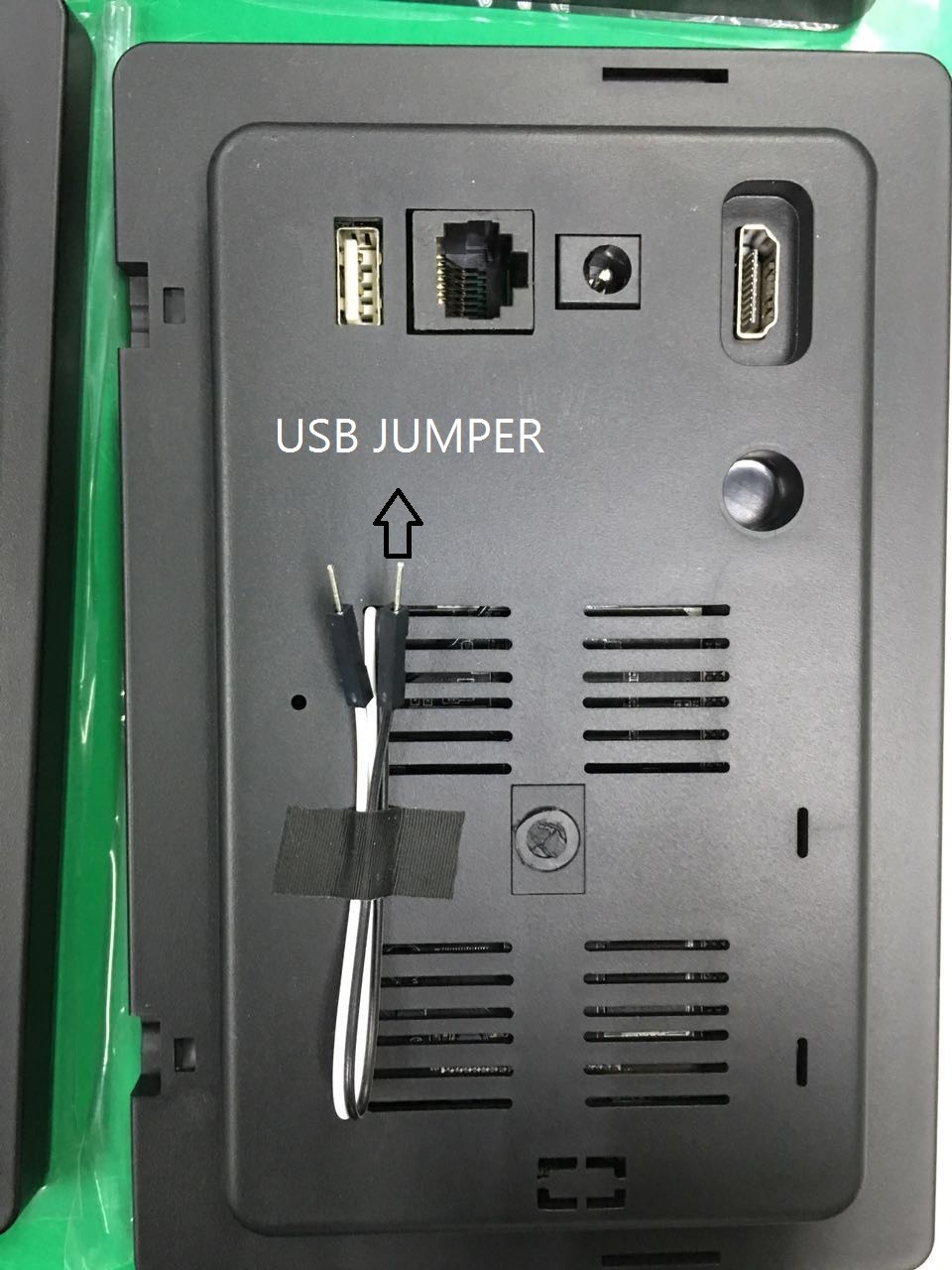

Usb jumper picture

Our Services

15 Years Experiences in Tablet PC for Automation
Competitive Price Directly From Manufacturer( Our Own Factory)
Excellent Support for Software and Hardware Modification
Services for Customized Logo and package
Quick Response for after-sale Services
On-time Delivery
1 Year quality Guarantee

As a manufacturer, ODM/OEM service is provided
